Chapter 5. Port Scanning Techniques and Algorithms

Introduction

As a novice performing automotive repair, I can struggle for hours trying to fit my rudimentary tools (hammer, duct tape, wrench, etc.) to the task at hand. When I fail miserably and tow my jalopy to a real mechanic, he invariably fishes around in a huge tool chest until pulling out the perfect gizmo which makes the job seem effortless. The art of port scanning is similar. Experts understand the dozens of scan techniques and choose the appropriate one (or combination) for a given task. Inexperienced users and script kiddies, on the other hand, try to solve every problem with the default SYN scan. Since Nmap is free, the only barrier to port scanning mastery is knowledge. That certainly beats the automotive world, where it may take great skill to determine that you need a strut spring compressor, then you still have to pay thousands of dollars for it.

The previous chapter described port scanning with Nmap in general terms, including a brief summary of Nmap's supported scan types in the section called “Selecting Scan Techniques”. This chapter describes each of those scan types in depth. Typical usage scenarios and instructions are given for each scan type, as are on-the-wire packet traces illustrating how they work. Then the ultra_scan algorithm (which most scan methods use) is discussed, with an emphasis on aspects that can be tweaked to improve performance.

Most of the scan types are only available to privileged users. This is because they send and receive raw IP packets, (or even ethernet frames) which requires root access on Unix systems. Using an administrator account on Windows is recommended, though Nmap sometimes works for unprivileged users on that platform when WinPcap has already been loaded into the OS. Requiring root privileges was a serious limitation when Nmap was released in 1997, as many users only had access to shared shell accounts. Now, the world is different. Computers are cheaper, far more people have always-on direct Internet access, and desktop Unix systems (including Linux and Mac OS X) are prevalent. A Windows version of Nmap is now available, allowing it to run on even more desktops. For all these reasons, users rarely need to run Nmap from limited shared shell accounts. This is fortunate, as the privileged options make Nmap far more powerful and flexible.

When discussing how Nmap handles probe responses, many sections discuss ICMP error messages by their type and code numbers. The type and code are each eight-bit fields in ICMP headers that describe the message's purpose. Nmap port scanning techniques are concerned only with ICMP type 3, which are destination unreachable messages. Figure 5.1 shows the ICMP header layout of such a packet (it is encapsulated in the data section of an IP packet, as shown in Figure 1, “IPv4 header”).

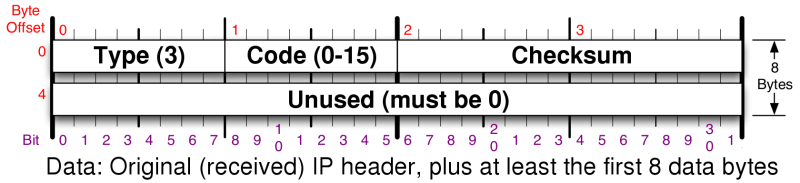

Figure 5.1. ICMPv4 destination unreachable header layout

ICMPv4 destination unreachable header layout

There are sixteen codes representing different destination unreachable messages. They are all shown in Table 5.1, though Nmap only cares about codes 0–3, 9, 10, and 13, which are marked with an asterisk.

Table 5.1. ICMP destination unreachable (type 3) code values

CodeDescription
0*Network unreachable
1*Host unreachable
2*Protocol unreachable
3*Port unreachable
4Fragmentation needed but don't-fragment bit set
5Source route failed
6Destination network unknown
7Destination host unknown
8Source host isolated (obsolete)
9*Destination network administratively prohibited
10*Destination host administratively prohibited
11Network unreachable for type of service (TOS)
12Host unreachable for TOS
13*Communication administratively prohibited by filtering
14Host precedence violation
15Precedence cutoff in effect
